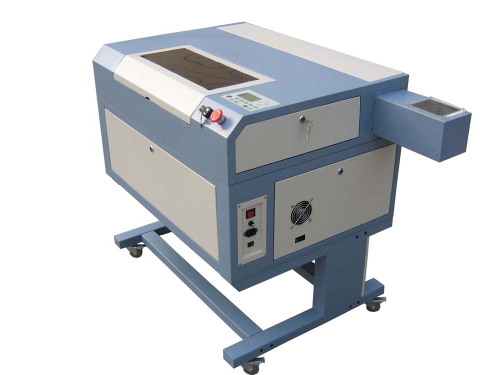

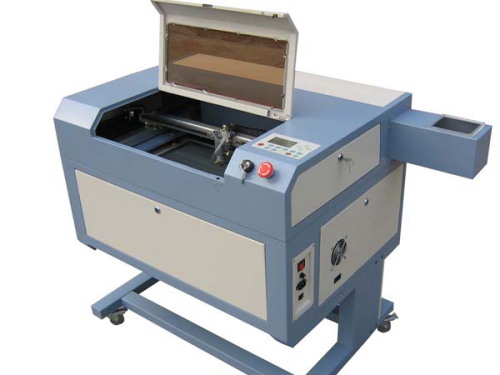

Redsail M500 laser engraver/cutter
|
Laser power |
50W |
|
Control system |
32 Bit DSP with Flash memory |
|
Max speed |
800mm/sec |
|
Working area |
300mm x 500mm |
|
Honeycomb Up and down work plate |
200mm |
|
Repeatability |
0.01 mm |
|
Resolution |
1000 DPI |
|
Laser tube |
Water cooling Co2 sealed glass |
|
Fume solution |
Fume extraction system |
|
Cooling |
Water cooled laser |
|
Language |
Plt, Dxf, Bmp, Dst, Ai |
|
Rotary attachment |
Yes |
|
Interface |
USB 2.0 |
|
Drive type |
Stepper motor (Micro stepping) |
|
Voltage AC |
220V/10A/1 PH |
|
Machine dimensions (cm) |
115 x 67 x 89 |
|
Package dimensions (cm) |
127 x 79 x 105 |
|
G. W. (Kg) |
125 |
|
Warranty |
12 Months |
|
Optional accessories |
Red dot system, cabinet light, water chiller, fume extraction fan. | | |
