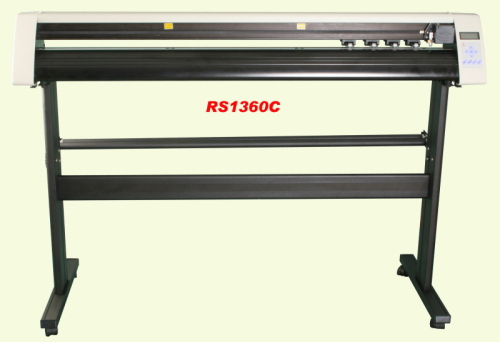

RS1360C SPECIFICATIONS |
|
Model |
RS1360C |
|
Control System |
RISC CPU |
|
Buffer Capacity |
4MB |
|
Drive type |
Stepper motor |
|
Max Media Size (mm) |
1360mm |
|
Max Cutting Size (mm) |
1260mm |
|
Programmable Cutting Speed |
Min = 50mm/sec, Max = 600mm/sec |
|
Max Cutting Force |
50 to 500 grams in 30 Adjustable steps |
|
LCD display |
English |
|
Mechanical Resolution |
1000 DPI (0.0254mm) |
|
Software Resolution |
1000 DPI (0.0254mm) |
|
Repeatability |
0.1mm |
|
Commands/Language |
HPGL |
|
Control Panel |
English |
|
Interfaces |
RS232, USB with converter cable |
|
Power |
AC90V-220V, suitable for Australia |
|
Warranty |
12 Months, including parts & labour |
|
Gross weight |
26.0kg |
|
Box dimensions |
166cm(L) x 30.5cm(W) x 38.5cm(H) |
|
Compatible software |
SignLab, Corel 9, 10 11,and 12, Flexisign, Win PC Sign (letter) ,Signcutx2, Artcut 2005, Easycut, and others.... |
|
Blade type |
Roland, 45 degree standard type blade |
|
Max cutting thickness |
1mm |
| |
Brass Gears, Knurled metal feed roller
Advanced limit sensors
|
|
RS1360C PACKAGES INCLUDE |
|
- 1 x New RS1360C vinyl cutting plotter:
- 3 x standard 45 degree cutting blades included (30 and 60 degree blades available)
- 1 x graphics drawing pen
- 1 x power cable
- 1 x R232 connection cable
- 1 x blade holder
- 1 x setup manual
- 1x Artcut software package
- 1 x Easycut software package
-
1 x Flexisign driver
-
1 x machine dust cover
-
1 x machine stand (which includes wheels, brakes and dual media dispenser)
-
1 x machine ruler (for easy vinyl setup)
-
1 x fuse
-
4 x vinyl holding rollers, otherwise known as pinch rollers. (Extra pinch rollers are available)
|
 |
|
|
| |
